Many types of valves are required in a process plant for flow regulation or on off purpose.
Slide gate valve p and id symbol.
Manual operated valve p id symbols and figures fodic 2.
This is the trickiest part of reading p id and pfd.
Trajectory of globe vale.
P id symbols for piping valves.
Vortex s design philosophy is to develop products that compensate for wear require minimal spare parts provide in line maintenance and maintain a longer service.
Used when a straight flow of fluid and minimum restriction is desired.
It is a modification of a generic valve symbol by inserting a vertical line between two triangles.
Piping and instrument diagram standard symbols detailed documentation provides a standard set of shapes symbols for documenting p id and pfd including standard shapes of instrument valves pump heating exchanges mixers crushers vessels compressors filters motors and connecting shapes.
Vortex offers a wide range of solids handling components for dry bulk material handling application.
Trajectory of ball vale.
If you remember that i have mentioned that p id symbols change from company to company valves symbols are the one that changes most of the time.
Type of valve employed depends on nature of fluid flow control required operating pressure and temperatures as well as surround atmosphere.
Each p id has its own legend that identifies the symbols for the various equipment.
The first is for butt welding ends second is for flanged end valve and the third one is for socket end connection.
3 way mixing gate valve.
Our slide gates diverters loading spouts iris valves handle nearly any type of dry solids from fine powders to heavy ore.
P id valve symbols 7 cards created by jasonclemens last updated.
P id symbols exist for all major components and lines such as valves vessels instruments pumps compressors and towers.

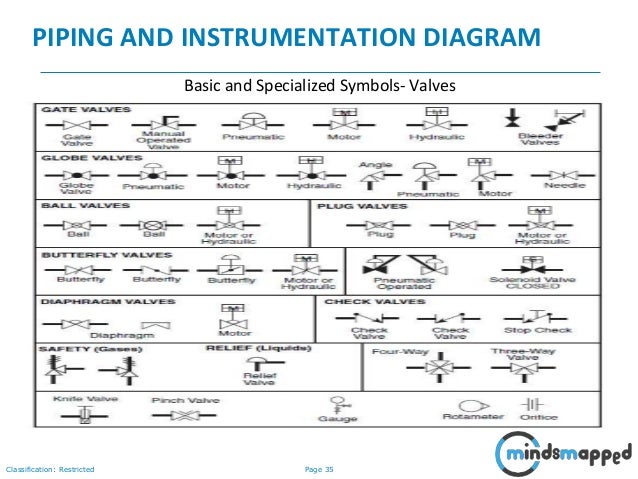

Here is a list of symbols for various types of valves used in process industry.
